Outdoor Aerial Fiber Optic Cable Loose Tube 2 Core 12 Core 24 Core Fiber Optic Cable ADSS

  • 1
  • 2

Brand Name : MingTong

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 500-5000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Application : Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise

Type : ADSS

Fiber Number : 2-288

Operating Temperature : -20℃~+85℃

Central Strengthen Member : FRP

Sheath : PE

Life Expectancy : Over 30 Years

Number Of Conductor : ≥ 10

Storage : -40℃ To + 70℃

Custom : Customized Available

Water Blocking Material : Dry Water Blocking

Return Loss : ≥50dB

Core : 24 Core

Number Of Conductors : ≥ 10

Package : Plywood Drum

Span : 100/200/300/400m/500m

Jacket : Single PE Jacket

Highlight : 12 Core ADSS Fiber Optic Cable, 24 Core ADSS Fiber Optic Cable, 2 core ADSS Fiber Optic Cable

Name : ADSS Cable

Contact Now

ADSS Outdoor Aerial Light Cable One Loose Tube 2core 12 Core 24 Core Fiber Optic Cable


Outdoor Aerial Fiber Optic Cable Loose Tube 2 Core 12 Core 24 Core Fiber Optic Cable ADSS

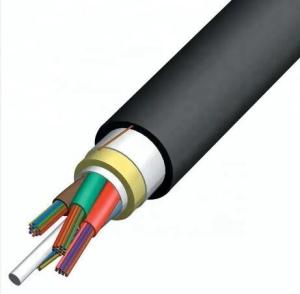

Structure characters
Loose tube with non-metallic strengthen member.High flexible amaid yarn.Can work at electric field<=25KV/m in a long period
Properties
1. Up to 288 optic fibers
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.
Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to telecom network;
2. For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical Date:(for 24 core fiber, 800m span)

Fiber Optic Range Span(M) Out-diameter(MM) Module(N/) Linear Expanding Coefficient(1/K) Weight(KG/KM) Safely running strain(N)
Weather condistion:wind speed: 35m/s and 0mm ice thickness.
24 800 15.5 2.86X10 0.02X10 200 29680
Weather condistion:wind speed: 10m/s and 5mm ice thickness.
24 800 14.5 2.33X10 0.11X10 185 19600
