GYTS Steel Armored Fiber Optic Cable Loose Tube PE Sheath For Communication / LAN

Brand Name : MingTong

Model Number : GYTS

Certification : ISO

Place of Origin : Dong Guan China

Price : 500-5000RNB/KM

Payment Terms : L/C,T/T

Supply Ability : 200km/Day

Delivery Time : It depends on the actual situation.

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Name : Steel Armored Fiber Optic Cable

Single Armour Material : Corrugated Aluminium Tape

Loose Tube Material : PBT Or Jelly

Outer Sheath Material : PE

Outer Sheath Color : Black

Waterblocking Material : Water Blocking Tape Or Filling Compound

Messenger Material : Steel Wires

Highlight : GYTS Steel Armored Fiber Optic Cable, Duct Steel Armored Fiber Optic Cable, GYTS 12 strand armored fiber optic cable

Contact Now

Gallery

GYTS Steel Armored with PE sheath Fiber Optic Cable For Duct And Aerial with loose tube

GYTS Steel Armored Fiber Optic Cable Loose Tube PE Sheath For Communication / LANGYTS Steel Armored Fiber Optic Cable Loose Tube PE Sheath For Communication / LANGYTS Steel Armored Fiber Optic Cable Loose Tube PE Sheath For Communication / LAN

Product Description

GYTS / GYTS53 armored steel tape for Fiber Optic Cable for Duct and Aerial

Structure characters

Metallic strengthen member

Single coated PE corrugated steel tape under PE sheath

Properties

Armored steel tape providing maximum ,anti-crush property.

Bullet resistance performance

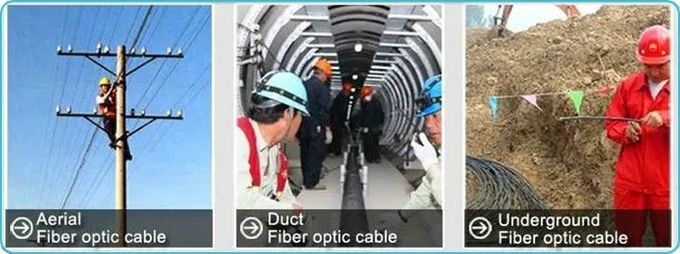

Recommended laying methods

Aerial, Duct

GYTS Steel Armored Fiber Optic Cable Loose Tube PE Sheath For Communication / LAN

Applicable fields

Long distance communication and LAN

Technical Data

Fiber range Cable outer diameter Cable weight Min.bending radius Allowable tesion(N) Max.crus loading force(N/1000mm)
Static Dynamic Short term Long term Short term Long term
2-30 9.8 115
32-36 10.6 140
38-60 11.0 140 10 times cable diameter 20times cable diameter 1500 600 1000 300
62-72 11.6 165
74-96 13.2 205
98-120 14.7 245
122-144 16.1 285
146-216 16.6 300
218-240 19.8 395
242-288 22.0 470


Packing &Delivery&Payment&FAQ

1) Length: 3000m/roll, other length is available according to clients request.

2) Packing: wooden drum

3) Other packing available according to client's request

Delivery Detail: 7-15 days after receiving 30% T/T or L/C

Packaging Details:All of our fiber optic cable package are with export wooden drum. Indoor FTTH cable's wooden dimension is 50x50x32cm, delivery length 3km/drum, Outdoor fiber optic cable's wooden dimension is 100cm*73cm*73cm, 0.54CBM, can be load about 44 drums for a 20GP.

Also accept custom cable drum from customers. welcome to contact us!

GYTS Steel Armored Fiber Optic Cable Loose Tube PE Sheath For Communication / LAN

GYTS Steel Armored Fiber Optic Cable Loose Tube PE Sheath For Communication / LAN
